Dynamic policy assignment by radius attribute named Filter-id

This article created to show how radius attribute “Filter-id” can be used to apply different role dynamically to wireless end device according to the group of user or PC.

[Active directory configuration]

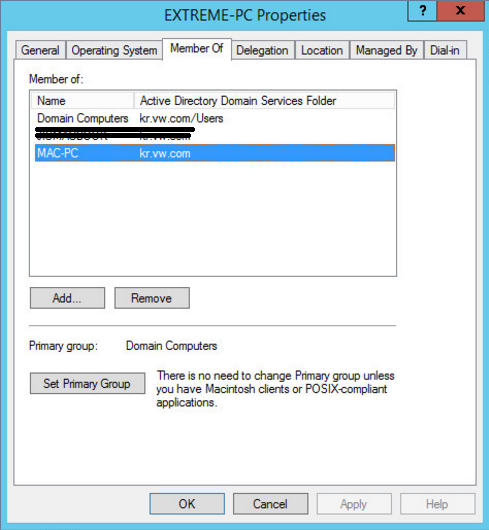

PC named EXTREME-PC is registered as a member on the domain

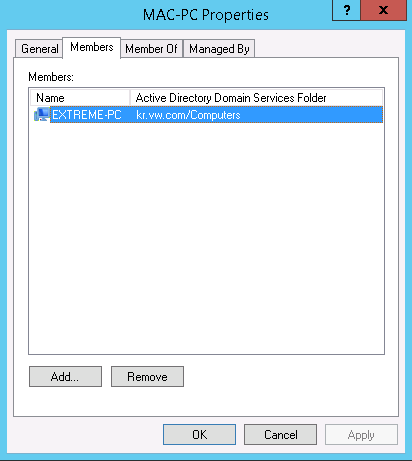

This PC is assigned to the group named MAC-PC

NPS policy for this group of PC made on NPS server, and use radius attribute Filter id of which name is same with role in EWC. In below case, it is "MACBOOK".

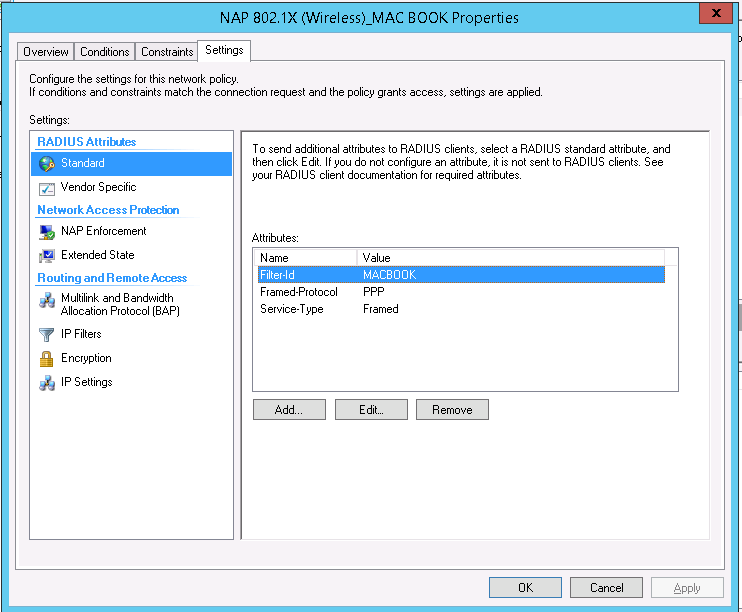

[ NPS configuration on Windows 2012 server ]

[ role configuration on Identifi controller ]

• Filter-id name and role name configured on the controller must be same.

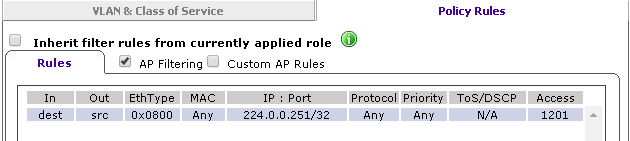

[ policy rule of the role ]

[ cos configuration of the role ]

As a result, the traffic from the PC named EXTREME-PC classified as QP3 according to the role configured on Identifi controller.

[Switch config ]

create qosprofile "QP3"

configure dot1p type 3 qosprofile QP3

[result ]

# show ports 47 qosmonitor no-refresh

Port Qos Monitor

Port     QP1    QP2     QP3    QP4    QP5    QP6    QP7    QP8

        Pkt    Pkt     Pkt    Pkt    Pkt    Pkt    Pkt    Pkt

        Xmts   Xmts    Xmts   Xmts   Xmts   Xmts   Xmts   Xmts

=================================================================

47      1659     0   1379024    0      0      0      0      110

[ Authentication result on NPS ]
shows that this PC matched with the condition named MAC BOOK.

Different role named CIL_MOD1 is applied to the other user named wuser1,even though this user also connected to the same SSID named test1.

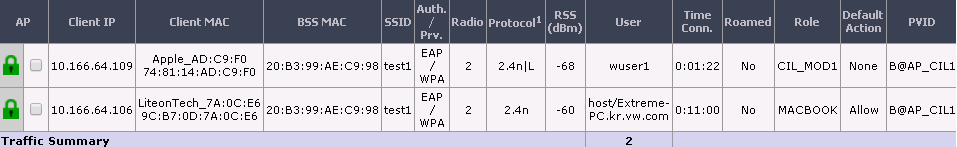

[ client information on Identifi controller ]

Identifi also has another feature named VLAN ID & role mapping. it is possible to apply dynamic role based on the Tunnel-private-Group-ID.
