Identifi - Wireless trouble shooting

IP Tools

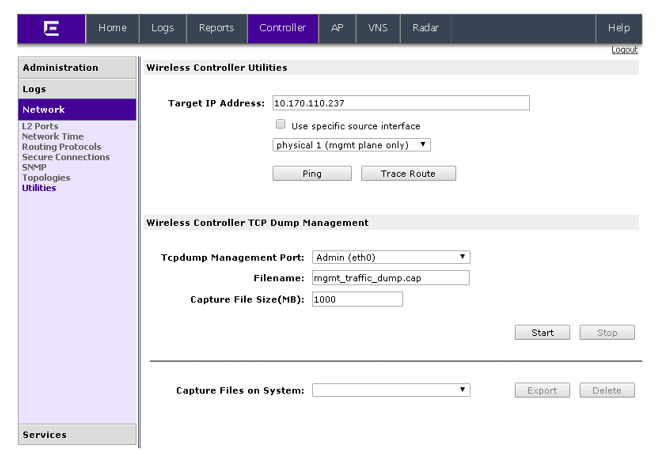

The Ping and Trace Route tools are available on the Wireless Controller Utilities section.  This allows you to test the connection to a target IP address from the controller.

TCPdump management

The TCPdump management utility allows you to capture exception traffic that is sent to the management plane.  Exception traffic is defined as traffic that is sent to the management plane from the data/control plane for special handing (i.e. DHCP, OSPF and TFTP traffic).  The TCP dump utility allows you to determine if packets are being dropped in the data/control plane.

The captured traffic is stored in a binary tcpdump-format file on local hard-drive. The captured file can be exported to a local machine for packet analysis (Wireshark, etc.).

There are some limitations.  Only one traffic capture is allowed on the system at a single time and the controller does not permit the capture of any data plane traffic.   Lastly, WDS, Mesh and Bridge-at-AP captures are not supported.

Exporting TCPdump

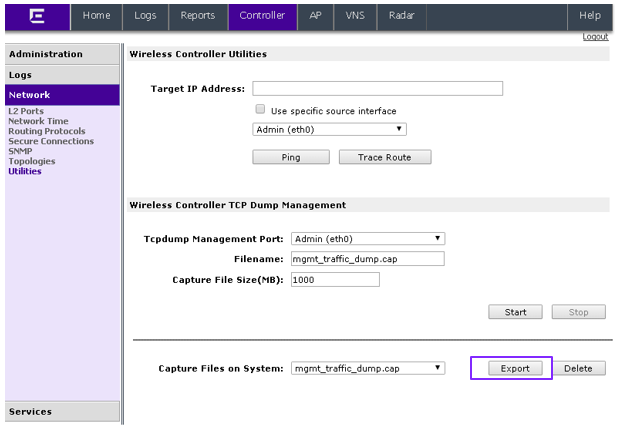

After a capture has completed you have the ability to Export it to a file on your desktop that can be opened by a traffic analyzer.

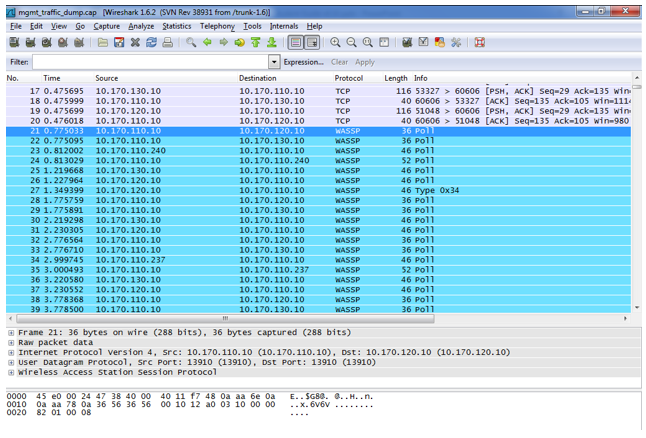

TCPdump Capture: Wireshark Display

After captured file exported to the desktop, it can be displayed by wireshark.

Wireless controller shell commands

[ how to enter shell ]

To enter to the Wireless Controller Shell:

EWCGroup1.extremenetworks.com# shell

Password:

root@EWCGroup1.extremenetworks.com:~#

[ TCPdump on the shell ]

root@EWCGroup1.extremenetworks.com:~# tcpdump -i csi1 port 1812 -vv

[ Checking the log ]

-“Tail –f /var/log/messages” will print event as they occur (Linux)

-Tail –f /var/dhcp/dhcpd.leases

-tail -f /var/log/messages | grep XX:XX:XX:XX:XX:XX (device's mac address)

-cat /var/log/messages | grep XX:XX:XX:XX:XX:XX (device's mac address)

-tail -f /var/log/messages | grep AP-serial-number

-cat /var/log/messages | grep username

root@EWCGroup1.extremenetworks.com:/var/log# tail -f messages | grep zee_employee1

Nov 11 13:43:43 EWCGroup1.extremenetworks.com events: Radius Client Radius Response:  Accepted: UserID:zee_employee1, Client MAC:[E8:FC:AF:86:79:21] 3

root@EWCGroup1.extremenetworks.com:/var/log# tail -f messages | grep Radius

Nov 11 13:49:00 EWCGroup1.extremenetworks.com events: Radius Client Radius Response:  Accepted: UserID:zee_employee1, Client MAC:[E8:FC:AF:86:79:21] 3

Nov 11 13:49:01 EWCGroup1.extremenetworks.com events: Radius Accounting New session is created for client [E8:FC:AF:86:79:21]

(After deleting End-System from NAC):

Nov 11 13:47:12 EWCGroup1.extremenetworks.com events: Radius Accounting Client [E8:FC:AF:86:79:21] on VNS [ZEE_IT] is deregistered with termination code: 106 [Authorization Server Request]

EWCGroup1.extremenetworks.com# show log

Display logs and reports.

Usage: show log <log_name> [[first | last] <number>]

Log Names:

    ospf-neighbor

    ospf-linkstate

    dhcp

    ntp

    ac (critical|major|minor|info|all)

    ap <ap_serial> (critical|major|minor|info|all)

    mu_access.log

    upgradeLog.txt

    auditRecords.log

    upgrade.log

    configChanges.log

    login.log

    station

“show log <log_name> [[first | last] <number>]

EWCGroup1.extremenetworks.com# show log auditRecords.log

11/09/15 15:34:34   admin   VNS Cfg  Common  Changed Static Egress Untagged VLANs for Role 'ZEE_IT'

11/09/15 15:13:47   admin   APs  Radio 2  Channel changed from [13-(2472,2452 MHz)] to [13: (2472)] for AP serial 14385852085E0000, radio 2 802.11g/n

EWCGroup1.extremenetworks.com# show log ac (critical | major | minor | info | all)

EWCGroup1.extremenetworks.com# show ap

serial 12441637905C0000 18thFloor_AP4 AP3705i

serial 14385852085E0000 18thFloor_AP01 AP3825i

EWCGroup1.extremenetworks.com# show log ap 14385852085E0000 all

Msg: 11/11/15 10:14:40, Info, 11/10/15 23:14:40: SSH exit auth (admin): Idle timeout

Msg: 11/11/15 10:11:28, Info, 11/10/15 23:11:27: SSH connection from 10.254.8.123:57017

Msg: 11/11/15 10:05:21, Info, 11/10/15 23:05:20: SSH exit auth (admin): Idle timeout

Msg: 11/11/15 10:02:07, Info, 11/10/15 23:02:06: SSH connection from 10.254.8.123:56934

Msg: 11/11/15 09:58:24, Critical, 11/10/15 22:57:28: AccessPoint Rebooting due to: Received Standy Request from Wireless Controller

EWCGroup1.extremenetworks.com# show log auditRecords.log

11/09/15 15:34:34   admin   VNS Cfg  Common  Changed Static Egress Untagged VLANs for Role 'ZEE_IT'

11/09/15 15:13:47   admin   APs  Radio 2  Channel changed from [13-(2472,2452 MHz)] to [13: (2472)] for AP serial 14385852085E0000, radio 2 802.11g/n

EWCGroup1.extremenetworks.com# show log ac (critical | major | minor | info | all)

EWCGroup1.extremenetworks.com# show ap

serial 12441637905C0000 18thFloor_AP4 AP3705i

serial 14385852085E0000 18thFloor_AP01 AP3825i

EWCGroup1.extremenetworks.com# show log ap 14385852085E0000 all

Msg: 11/11/15 10:14:40, Info, 11/10/15 23:14:40: SSH exit auth (admin): Idle timeout

Msg: 11/11/15 10:11:28, Info, 11/10/15 23:11:27: SSH connection from 10.254.8.123:57017

Msg: 11/11/15 10:05:21, Info, 11/10/15 23:05:20: SSH exit auth (admin): Idle timeout

Msg: 11/11/15 10:02:07, Info, 11/10/15 23:02:06: SSH connection from 10.254.8.123:56934

Msg: 11/11/15 09:58:24, Critical, 11/10/15 22:57:28: AccessPoint Rebooting due to: Received Standy Request from Wireless Controller

EWCGroup1.extremenetworks.com# show log station

Msg: 11/11/15 13:40:18  EventType[State Change] MAC[E8:FC:AF:86:79:21]  BSSID[20:B3:99:F6:1B:40]  Details: VNS[ZEE_IT] Auth[valid]

Msg: 11/11/15 13:40:17  EventType[Area Change]  MAC[E8:FC:AF:86:79:21]  Details: Area[Unknown]

Msg: 11/11/15 13:40:17  EventType[Registration] MAC[E8:FC:AF:86:79:21]  AP[18thFloor_AP01] BSSID[20:B3:99:F6:1B:40]  SSID[ZEE]  Details: Radio[1]

# pwd

/tmp/log

# tail -f ap.log

Nov 11 04:59:03 kernel: ieee80211_node.c:449-gclist_timeout()-n_recovered=0

Nov 11 04:59:31 kernel: chantry_ext_stats_getip 202: error line 121

Nov 11 05:00:35 kernel: chantry_ext_stats_getip 202: error line 121

Nov 11 05:01:39 kernel: chantry_ext_stats_getip 202: error line 121

Nov 11 05:02:40 kernel: chantry_ext_stats_getip 202: error line 121

[ Check the process id and restart process ]

EWC.extremenetworks.com# show system_state process

      PID   Process Name           State % CPU    % Mem

       1807 Location Based Service S        0        0.2

       1781 VN Manager              S        0     0.7

       1635 NSM Server              S        0     0.4

       1247 Config Manager          S        0     1.8

       3314 CLI                     S        0     1.3

       1750 OSPF Server            S        0     0.4

       1670 PortInfo Manager      S        0     0.2

       1607 Remote INS              S        0     0.4

       27710 DHCP                    S        0     0.0

EWC.extremenetworks.com# restart 27710

    DHCP process being restarted.

[ Gathering MU info ]

# cget muInfo wifi0

Total MUs: 1

MU E8:FC:AF:86:79:21, vap ath0

IP 10.32.100.253 (0xa2064fd)

policyName ZEE_IT topology T, topology_id 0

rcUlCIR 0, rcUlCBS 0, rcDlCIR 0, rcDlCBS 0

rcUlDP 0, rcUlDB 0, rcDlDP 0, rcDlDB 0

portClosed 0 li_flags 21 ni_attr_flags 0 AcAssocRx 1

# cget muInfo wifi1

Total MUs: 0
